Product

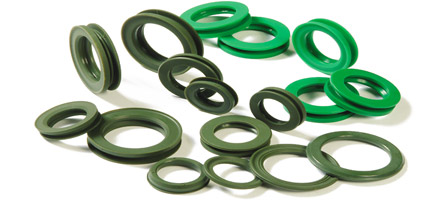

Excavator Track Link Seal
ProductHeavy Equip Track Link Seal PartExcavator Track Link Seal
| Applied Technology | KOMATSU, HITACHI Technology (Japan) |
|---|---|
| Main Materials | Polyurethane + PTFE Polytetrafluorethylene |
| Developed Models | 71 Models including EC210 |
| Certification | Quality-certified for the ISO 9001:2000 & Nuclear Power Plant |
| Technical Cooperation | KOMATSU, HITACHI (Japan) |
| Maker | Model | Standard inside x outside x height |
Weight(ton) | Shape |
|---|---|---|---|---|
| KOMATSU | PC60-7 | 24.5 x 41.4 x 10.3 | 6 | M Type - Regular Seal |
| PC60-7 | 25.0 x 41.4 x 12.4 | 6 | M Type - Master Seal | |
| PC60 | 24.0 x 42.0 x 10.3 | 6 | J Type - Seal | |
| PC60-3H | 26.3 x 42.0 x 9.3 | 6 | J Type - Seal | |
| PC100-5/6 | 30.4 x 46.5 x 11.9 | 10 | M Type - Regular Seal | |
| PC100-5/6 | 30.4 x 46.5 x 14.3 | 10 | M Type - Master Seal | |
| PC100 | 30.5 x 46.4 x 12.1 | 10 | M Type - Regular Seal | |
| PC100 | 30.5 x 46.4 x 14.2 | 10 | M Type - Master Seal | |
| PC120-1 | 30.4 x 46.9 x 10.4 | 12 | M Type - Regular Seal | |
| PC120-1 | 30.4 x 46.9 x 12.4 | 12 | M Type - Master Seal | |
| PC138 | 32.5 x 50.6 x 12.1 | 13 | M Type - Regular Seal | |
| PC200 | 38.8 x 60.5 x 14.9 | 20 | M Type - Master Seal | |
| PC200 | 38.8 x 59.7 x 14.5 | 20 | M Type - Regular Seal | |
| PC300 | 45.1 x 67.0 x 15.7 | 30 | M Type - Master Seal | |
| PC300 | 45.1 x 67.8 x 13.6 | 30 | M Type - Regular Seal | |
| PC400-6 | 47.6 x 71.5 x 15.1 | 40 | M Type - Regular Seal | |
| PC400-6 | 47.6 x 72.2 x 15.7 | 40 | M Type - Master Seal | |
| PC400-5 | 51.4 x 72.6 x 5.5 | 40 | J Type - Seal | |
| HITACHI | EX60 | 33.0 x 47.1 x 10.1 | 6 | J Type - Seal |
| EX100 | 36.7 x 51.3 x 5.5 | 10 | J Type - Seal | |
| EX120 | 34.0 x 52.0 x 10.4 | 12 | M Type - Regular Seal | |
| EX150 | 38.0 x 54.9 x 10.9 | 15 | J Type - Seal | |
| PZX200 | 38.8 x 61.1 x 14.7 | 20 | M Type - Regular Seal | |
| EX200-2 | 41.0 x 60.4 x 5.7 | 20 | J Type - Seal | |
| PZX270.330 | 45.1 x 68.6 x 13.6 | 27~33 | M Type - Regular Seal | |
| CATERPILLAR | CAT312 | 34.0 x 52.0 x 10.4 | 13 | M Type - Regular Seal |
| CAT312 | 34.4 x 51.6 x 11.5 | 13 | M Type - Master Seal | |
| CAT320 | 37.0 x 59.4 x 14.0 | 20 | M Type - Master Seal | |
| CAT325 | 43.5 x 66.0 x 5.9 | 26 | J Type - Seal | |
| CAT320 | 37.3 x 58.8 x 14.5 | 26 | M Type - Regular Seal | |
| CAT330 | 48.0 x 70.0 x 5.7 | 32 | J Type - Seal | |
| VOLVO | EC140 | 34.0 x 55.0 x 11.7 | 14 | M Type - Regular Seal |
| EC210 | 38.8 x 59.7 x 14.5 | 21 | M Type - Regular Seal | |
| EC290 | 45.5 x 67.7 x 15.1 | 29 | M Type - Regular Seal | |
| EC460 | 48.5 x 72.2 x 15.1 | 46 | M Type - Regular Seal | |
| SUMITOMO | SH200 | 37.3 x 58.8 x 14.5 | 20 | M Type - Regular Seal |
| SH300 | 47.6 x 71.5 x 15.1 | 30 | M Type - Regular Seal | |
| SH450 | 49.4 x 74 x 13.6 | 45 | M Type - Regular Seal | |
| SH450 | 53.3 x 74.9 x 6.1 | 45 | J Type - Seal | |
| HYUNDAI | R210-5 | 38.8 x 59.7 x 13 | 19 | M Type - Regular Seal |
| R290-5 | 45.1 x 67.0 x 13.6 | 27 | M Type - Regular Seal | |
| HX100-2 | 44.45 x 68.25 x 11.5 | 28 | J Type - Seal | |
| B108 | 41.0 x 60.4 x 5.7 | 20 | J Type - Seal | |
| SP190 | 39.8 x 59.8 x 5.6 | 20 | J Type - Seal | |
| SP190 | 37.3 x 58.8 x 13.15 | 20 | M Type - Master Seal | |
| SP190 | 37.3 x 58.8 x 14.5 | 20 | M Type - Regular Seal | |
| KU216B | 51.4 x 72.6 x 5.5 | 40 | J Type - Seal | |
| CH311 | 36.7 x 51.3 x 5.5 | 10 | J Type - Seal | |
| KOBELCO | SK120 | 32.8 x 47.8 x 6.2 | 12 | J Type - Seal |
| YANMAR | VIO70 | 24.5 x 43.2 x 9.3 | 6 | M Type - Regular Seal |
| KATO | HD880 | 38.6 x 56.0 x 13.6 | 18 | M Type - Regular Seal |
| SAMSUNG | MX6-2 | 38.6 x 54.7 x 5.7 | 13 | J Type - Seal |
| MX225 | 39.8 x 59.8 x 5.6 | 22 | J Type - Seal | |
| MX295 | 47.4 x 68.25 x 11.5 | 28 | J Type - Seal | |
| DAEWOO | DH08 | 38.0 x 59.0 x 10.25 | 18 | M Type - Regular Seal |
| DCF TREK | E311 | 34.0 x 52.1 x 5.5 | 14 | J Type - Seal |
| P4604 | 31.5 x 47.5 x 9.4 | 8 | M Type - Regular Seal | |
| R800C-7 | 57.5 x 86.5 x 13.6 | 80 | M Type - Regular Seal | |
| R80C-7 | 24.5 x 41.4 x 10.3 | 6 | M Type - Regular Seal | |
| 225-4 | 34.0 x 54.0 x 13.5 | 20 | M Type - Regular Seal | |
| 225-5 | 37.3 x 58.8 x 14.5 | 20 | M Type - Regular Seal | |
| R140C-7 | 38.6 x 54.7 x 5.7 | 13 | J Type - Seal | |
| Etc | HV290-5 | 45.1 x 66.5 x 13.7 | 27 | M Type - Regular Seal |
| HV210-5 | 37.0 x 59.7 x 11.4 | 20 | M Type - Regular Seal |
