Oil Seal

ProductSpecial Rubber PartOil Seal

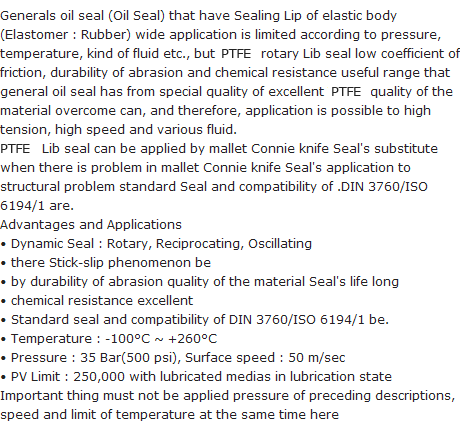

General Information
Design Type
Lip Materials
Lip Materials NBR ACM VMQ FPM Rubber Materials
Nitrile Polyacrylate Silicone Fluoroelastomer
Temperatue -45°C - 125°C -30°C - 150°C -60°C - 200°C -35°C - 200°C Service Temperature
Oil Resistance ● ● ■ ● Oil Resistance
Acid Resistance ■ ▲ ▲ ▲ Acid Resistance
Alkali Resistance ■ ◆ ◆ ▲ Alkali Resistance
Water Resistance ■ ▲ ■ ■ Water Resistance
Heat Resistance ■ ● ● ● Heat Resistance
Cold Resistance ■ ▲ ● ▲ Cold Resistance
Wear Resistance ● ● ■ ● Wear Resistance
Ozone Resistance ■ ● ● ● Ozone Resistance
Lip Materials Advantages Disadvantages
NBR Low price
Resistant to the Oil, water, silicone oil, grease, glycol systems fluid
Good for the heat resistance and the abrasive resistance		 Poor ozone resistance and weather resistance
ACM Good aging resistance and flexural crack resistance, Good resistance for mineral oil, hypoid gear oil, E.P additives and grease. Higher temperature range than the NBR Higher than the price of NBR. Low mechanical strength, general low-temperature characteristics, Poor Dry Running and water resistance
Silicone Wide temperature range (low ~ high temp.) Good ozone resistance and permanent compression Less resistant to Department of hydrocarbon fluids such as gasoline and water vapor of over 50psi. Higher than the price of ACM
FPM Excellent heat resistance and chemical resistance High price
General water resistance, dry running and low-temperature characteristics
Fluid Compatibility
TYPE OF FLUID Lip Material
NITRILE POLYACRYLATE SILICONE FLUOROELASTOMER
Engine Oil SAE 30 Wt. ● ● ● ●
SAE 10 Wt. ● ● ■ ●
Gear Oil Super Gear ● ● ▲ ●
Hypoid Gear ■ ■ ◆ ●
Turbine Oil No.2 ■ ■ ●
Machine Oil No.2 ■ ■ ▲ ●
Automatic Transmission Fluid ● ● ▲ ●
Petroleum Base Lubricating Oil ● ● ▲ ●
Gasoline ▲ ◆ ◆ ●
Light Oil/Kerosene ▲ ◆ ◆ ■
Cutting Oil ● ■ ▲ ●
Grease ● ● ● ●
E.P.Lubricants ■ ● ◆ ●
Water-Glycol ● ◆ ■ ▲
Alcohol ● ◆ ■ ▲
20% Hydrochloric Acid Solution ▲ ▲ ▲ ●
30% Sulfuric Acid Solution ▲ ▲ ◆ ●
*Special compound available.
● Very good.
■ Good for most applications.
▲ Fair, can be used if no other materials available but otherwise not recommended.
◆ Not recommended.
Spring, Metal Case Material
Fluid Fluid Spring Metal Case
Standard Material Special Material Standard Material Special Material
SW
SWP		 Stainless Steel (sus) Cold Rolled Steel Sheet(SPCC)
Hot Rolled Steel Plates(SPHC)		 Stainless Steel (sus)
304 316 304 316
Grease O O O O O O
Water O O O O
Steam O O O O
Sea Water O O
Acid O O
Alkali O O O O

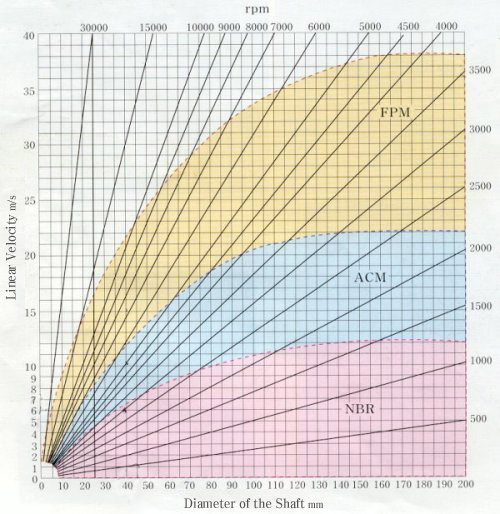

Relationship with Lubrication, Rotation speed and Frictional heat
Lubricating oil is very important in the function of the seal. Actual sealing lib does not touch directly on the shaft. 1-3µm thin meniscus of the oil film is in contact and affects the rotational load, surface roughness and type of oil. During the first few hours oilseal sealing parts of the work to be flat to form a meniscus oil patch, this oil can be stolen in the temporarily. Likewise, a few hours required for the initial operation is called 'bedding-in' time. Adequate supply of lubricant to minimize friction between the sealing lib and the shaft and to reduce friction to prevent the column will hold the lifetime of the seal. Large friction to damage the seal and it will also lose the power.

Consider the machalyeol Sealing Lip, the shaft axis and the rotation speed is selected according to the appropriate material.

Shaft
  • Hardness ≥ min. 45 HRC

  • Roughness

    Rotary Seal : Ra 10 ~ 20 µinch (0.25 ~ 0.50 µm)
                                           Rmax = 31~126 µinch(0.8 ~ 3.2 µm)
    Reciprocating Seal : Ra 5 ~ 10 µinch (0.13 ~ 0.25 µm)
                                                                 Rmax = 31~126 µinch(0.8 ~ 3.2 µm)

  • Processing Method

    Rotary Shaft : Plunge Grinding
    Reciprocating Shaft : Centerless Grinding

  • Lead in Chamfer

    • MILLIMETERS
      S.D. D S.D. D
      Up to 25.00 S.D. - 2.4 100.01 TO 125.00 S.D. - 5.6
      25.01 to 50.00 S.D. - 3.6 125.01 TO 150.00 S.D. - 6.6
      50.01 to 75.00 S.D. - 4.2 150.01 TO 250.00 S.D. - 7.00
      75.01 to 100.00 S.D. - 5.0 - -

  • Shaft Tolerance

    SHAFT DIAMETER(INCH) TOLERANCE SHAFT DIAMETER(DIN/METRIC) TOLERANCE
    Up to 4.000 ±.003 Up to 100㎜ ±0.08
    4.001 to 6.000 ±.004 100.10 to 150.00 ±0.10
    6.001 to 10.000 ±.005 150.10 to 250.00 ±0.13

Housing
Consider the difference between thermal expansion is recommended to use the Rubber Seal for the high thermal expansion coefficient, such as a light aluminum alloy and plastic case housing.

  • Lead in Chamfer

  • Roughness

    Rubber O.D Oil Seal : 1.5µm~3.75µm (12.5 µm Rmax)
    Metal O.D Oil Seal : Max.2.50µm (12.5µm Rmax)

  • Type Dimension Type Dimension Type Dimension Type Dimension
    VC 4*9.4*3 TC 7*18*7 SC 8*18*7 TC 10*19*7
    D 5*16*5 VC 7.5*15*5 D 8*18*8 VB 10*14*3
    D 5*18*8 S 8*14*3 TC 8*20*7 VB 10*15*2
    VC 5.5*15*5 VB 8*15*4 S 8*20*8 VB 10*15*4
    TC 6*16*5 TC 8*15*5 TC 8*22*7 VB 10*18*5
    D 6*16*5 VC 8*15*5 D 8*22*7 S 10*19*6
    S 6*22*7 VC 8*15*5 D 8*24*7 VC 10*20*4
    VC 7*12*3 TC 8*16*5 VB 9*15*4 VC 10*20*5
    VC 8*18*4 TC 9*17*6 TC 10*20*7
    VC 8*18*6
    D 10*20*7 D 10*25*7 VC 12*22*4 S 12*25*5
    D 10*21*10 D 10*30*10 VB 12*22*4 TC 12*25*7
    TC 10*21*7 VC 11*17*4.5 PCS 12*22*5.7 D 12*25*7
    D 10*21*8 VB 11*19*5 TC 12*22*7 SM 12*25.5*9
    VC 10*22*4.8 VB 11.1*21.3*4.8 D 12*22*7 TC 12*28*7
    D 10*22*6 VC 12*18*3 D 12*22.3*7 D 12*28*8
    TC 10*22*7 VB 12*18*3 D 12*23*8 D 12*30*6
    VC 10*25*5 VC 12*18*4 D 12*24*6 TC 12*30*8
    TC 10*25*7 D 12*20*7 TC 12*24*7 TC 12*32*8
    D 12*32*8 VC 13*19*3 DM 13*37*7 TC 14*26*7
    S 12*38*7 VC 13*22*3 SM 13.9*28.5*5.08 D 14*26*8
    D 12.4*30*8 VB 13*24*8.5 VB 14*20*3 TC 14*28*7
    VC 12.5*22*5 D 13*25*7 V 14*22*5 D 14*28*7
    SM 12.5*32*8 TC 13*25*7 VB 14*24*6 TC 14*30*13
    TC 12.7*25.4*7 D 13*28*7 TC 14*24*7 SA 14.5*31.5*10
    S 12.7*25.5*6.5 D 13*30*10 TC 14*25*6 VB 15*21*3
    SM 12.7*35*6.5 D 13*30*7 TC 14*25*7 PCS 15*22*4
    TC 12.8*25*7 TC 13*30*8 D 14*25*7 VC 15*22*5
    VB 15*22*5 TB 15*25*7 D 15*28*7 TC 15*35*7
    VC 15*23*4 D 15*25*7 TC 15*30*7 D 15*35*7
    VC 15*24*4 S 15*25.4*4.6 D 15*30*7 TC 15*35*8
    S 15*24*6 S 15*25.5*4.6 DM 15*30*7 D 15*35*8
    TC 15*24*7 D 15*26*6 TC 15*30*8 TC 15*42*7
    S 15*24*7 TC 15*26*7 TC 15*32*8 D 15*42*8
    D 15*24*7 D 15*27*7 D 15*32*8 VB 15.8*23.8*4.8
    S 15*25*5 S 15*28*6 TC 15*35*6 TC 15.8*25.4*6.5
    TC 15*25*7 TC 15*28*7 D 15*35*6 TC 15.8*25.4*8
    S 15.8*28*7 D 16*26*7 TC 16*30*7 S 17*25.5*6
    S 15.8*31.7*9.52 D 16*27*6 D 16*30*7 D 17*26*6
    VB 16*22*3 PCS 16*28*4 TC 16*32*8 SM 17*28*6
    SM 16*22.6*3 TC 16*28*5 D 16*32*8 TC 17*28*7
    VC 16*24*4 TC 16*28*7 D 16*35*8 D 17*28*7
    VC 16*24*5 D 16*28*7 SM 16.5*28.5*7.62 D 17*30*7
    TC 16*25*6 DM 16*28*7 S 16.6*31.7*6.35 TC 17*30*8
    TC 16*26*7 DM 16*28.5*8 VC 17*23*3 D 17*30*8
    S 16*26*7 D 16*28.5*8 VC 17*25*4 TC 17*32*6
    TC 17*32*8 D 17*40*8 TC 18*30*8 D 18*42*8
    D 17*32*8 VC 18*24*3 TC 18*32*8 D 18*47*7
    D 17*35*7 VB 18*26*4 D 18*32*8 VB 19*27*4
    TC 17*35*8 PCS 18*26*5 TC 18*35*7 TC 19*30*8
    D 17*35*8 VC 18*26*5 TC 18*35*8 D 19*31.7*7
    SC 17*40*6 D 18*28*6 D 18*35*8 S 19*31.8*4.8
    VC 17*40*6 TC 18*29*7 D 18*36*8 DM 19*31.8*8
    TC 17*40*8 D 18*30*7 D 18*40*5 VC 19*32*5
    TC 17*40*8 DM 18*30*7 D 18*40*7 TC 19*32*8
    D 19*32*8 D 19*38*10 VB 20*28*5 VC 20*32*5
    DM 19*32*8 TC 19*38*8 S 20*30*6 TC 20*32*6
    DM 19*33.5*8 D 19*47*8 TC 20*30*7 DM 20*32*6
    S 19*34.9*7.9 S 19.1*31.8*5 S 20*30*7 S 20*32*6
    SA 19*35*10 PCS 19.5*28*4 D 20*30*7 TC 20*32*8
    TC 19*35*8 D 19.8*28*7 DM 20*30*7 D 20*32*8
    D 19*35*8 PCS 20*28*5 SM 20*30*7 DM 20*32*8
    DM 19*35*8 VB 20*26*4 TC 20*30*8 VC 20*35*4
    D 19*35*9.5 VC 20*28*4 DM 20*31.8*6 TC 20*35*7
    D3 20*35*7 D 20*37*8 TC 20*42*10 TC 20*47*10
    S 20*35*7 TC 20*38*8 D 20*42*10 D3 20*47*10
    TC 20*35*8 D 20*38*8 TC 20*42*6 D 20*47*10
    D 20*35*8 TC 20*40*10 TC 20*42*8 SC 20*47*11
    DM 20*35*8 D 20*40*10 D 20*42*8 VC 20*47*11
    DB 20*35*9 D 20*40*6 D 20*44.5*8 TC 20*47*12
    TC 20*36*7 DM 20*40*7 TC 20*45*11 D 20*47*15
    SM 20*36*7 TC 20*40*8 D 20*45*11 D 20*47*7
    D 20*36*7 D 20*40*8 TC 20*45*8 TC 20*47*8
    TC 20*48*8 VC 22*30*5 TC 22*35*8 TC 22*40*7
    D 20*50*8 VB 22*30*5 D 22*35*8 S 22*40*7
    TC 20*52*10 SM 22*31.8*6 DA 22*35*8 D 22*40*7
    SA 20.2*38*9.9 TC 22*32*7 TC 22*36*8 TCV 22*40*7
    D 21*32*8 D 22*32*7 TC 22*38*8 TC 22*40*8
    TC 21*35*5 VC 22*34*5 D 22*38*8 TC 22*42*10
    D 21*35*8 D 22*34*7 D 22*39*11 DA 22*42*10
    VB 22*28*4 D 22*35*6 TC 22*40*10 D 22*42*11
    VC 22*30*4 TC 22*35*7 S 22*40*5 TC 22*42*8
    D 22*42*8 SM 24*32*3 D 24*42*8 VC 25*35*5
    TC 22*47*8 VC 24*32*4 D 24*43*8 S 25*35*5
    DM 22*47*8 PCS 24*32*5 TC 24*50*12 D 25*35*6
    S 22*52*11 VB 24*32*5 VC 25*32*4 D 25*35*6
    D 22*62*12 TC 24*37*8 PCS 25*33*4 SM 25*35*6
    S 22.2*31.7*4.8 TC 24*38*8 VC 25*33*4 TC 25*35*7
    D 22.2*47.6*6.5 D 24*38*8 PCS 25*33*5 S 25*35*7
    VC 23*29*3.2 TC 24*40*8 VB 25*33*5 D 25*35*7
    D 23*43*7 S 24*40*8 VC 25*35*5 SM 25*35*7
    TC 25*35*8 VB 25*38*5 VC 25*40*5 D 25*42*10
    D 25*35*8 TC 25*38*6 D3 25*40*7 D 25*42*7
    S 25*36*6 TC 25*38*7 TC 25*40*8 TC 25*42*8
    TC 25*36*7 D 25*38*7 D 25*40*8 D 25*42*8
    D 25*36*7 TC 25*38*8 DM 25*40*8 TC 25*42*9
    TC 25*36*9 D 25*38*8 D 25*40*8 D4 25*42*9
    TC 25*37*8 D 25*39*7 VC 25*41*6 D 25*43*8
    D 25*37*8 D 25*40*10 D 25*41.5*8 TC 25*43*8
    TC 25*38*5 SB 25*40*5 D 25*41.5*9 TC 25*44*7
    SA 25*44.5*11 D 25*47*10 D 25*50*11 TC 25*52*6
    D 25*44.5*8 D 25*47*7 D 25*50*12 TC 25*52*7
    D 25*45*10 TC 25*47*8 D 25*50*6 D 25*52*7
    TC 25*45*11 D 25*47*8 25*50*6 SM 25*52.5*11
    D 25*45*11 TC 25*48*8 TC 25*52*10 TC 25*62*10
    DM 25*45*11 D 25*48*8 D 25*52*10 VC 25*62*5
    DA 25*45*12.5 TC 25*50*10 D3 25*52*10 D 25*62*8
    TC 25*45*8 D 25*50*10 SC 25*52*11 TC 25*67*10
    SA 25*46.5*11 VC 25*52*11 S 25.4*34.9*4.8
    TC 25*47*10
    D 25.4*50.8*4.7 D 26*47*10 D 27*47*11 D 28*38*9
    SM 26*36*8 VC 27*33.5*3 D 27*50*10 SA 28*38*9
    TC 26*38*8 VC 27*33.5*4 D 27*52*7 TC 28*40*5
    D 26*38*8 D 27*37*7 VC 28*35*4 VC 28*40*5
    TC 26*40*8 TC 27*38*6 VB 28*35*4 D 28*40*6
    S 26*40*8 SM 27*41.4*7 V 28*36*5 S 28*40*7
    SM 26*40*8 TC 27*43*9 VB 28*37*4 TC 28*40*8
    D 26*42*8 D 27*43*9 VB 28*38*6 D 28*40*8
    TC 26*42*8 TC 27*47*11 TC 28*38*7 TC 28*42*8
    D 28*42*8 TC 28*47*10 TC 30*42*8 TC 30*48*8
    D 28*44*8 TC 28*47*8 TC 30*43*8 TC 30*50*11
    TC 28*44*8 TC 28*48*10 TC 30*44*8 TC 30*50*8
    TC 28*45*10 TC 28*48*8 TC 30*44*9 TC 30*52*10
    TC 28*45*8 TC 28*50*10 TC 30*45*6 TC 30*52*6
    D 28*45*8 TC 28*52*7 TC 30*45*8 TC 30*52*8
    DM 28*46*8 TC 28*62*10 TC 30*46*8 TC 30*55*11
    TC 28*47*10 PCS 30*40*6 TC 30*47*10 VC 30*55*5
    D 28*47*7 TC 30*40*8 TC 30*47*8 TC 30*58*10
    VC 30*42*5
    TC 30*60*10 VC 32*45*11 TC 32*55*9 PCS 35*45*6
    TC 30*60*12 VC 32*45*5 TC 32*62*10 TC 35*45*8
    TC 30*61.8*10 TC 32*45*8 TC 32*75*10 TC 35*45*9
    TC 30*62*10 TC 32*46*8 VC 34*42*5 TC 35*47*5
    TC 30*62*7 TC 32*48*8 TC 34*48*7 TC 35*47*7
    TC 30*72*10 TC 32*50*10 TC 34*54*11 TC 35*47*8
    TC 30*72*7 TC 32*52*10 PCS 35*41*4.5 TC 35*47*8
    TB 31*41*4.5 TC 32*52*8 PCS 35*42*4.5 TC 35*48*8
    PCS 31.5*41.5*6 TC 32*54*10 PCS 35*42*5 TC 35*50*10
    TC 35*50*8 TC 35*60*9 TC 38*52*10 TC 38*60*12
    TC 35*52*10 TC 35*62*10 TC 38*52*7 TC 38*62*12
    TC 35*52*7 TC 35*65*10 TC 38*54*10 PCS 40*50*6
    TC 35*54*11 TC 35*72*10 TC 38*55*8 TC 40*50*8
    TC 35*55*11 TC 35*72*12 TC 38*55*9 TC 40*52*7
    VC 35*55*5 TC 35*80*12 TC 38*56*11 PCS 40*52*7
    TC 35*55*8 TC 35*82*12 TC 38*57*9 TC 40*52*8
    TC 35*58*8 PCS 38*48*6 TC 38*58*11 TC 40*54*9
    TC 35*60*10 TC 38*50*8 TC 38*58*8 TC 40*55*11
    TC 40*55*5 VC 40*62*5 TC 40*90*12 TC 45*60*7
    TC 40*55*8 TC 40*62*8 TC 42*55*9 SB 45*60*7
    TC 40*58*8 TC 40*65*10 TC 42*60*9 TC 45*60*9
    TC 40*60*10 TC 40*68*10 TC 42*62*11 TC 45*62*7
    TC 40*60*8 TC 40*68*12 TC 42*65*12 TC 45*62*9
    TC 40*60*9 TC 40*70*12 TC 42*72*10 TC 45*65*10
    TC 40*62*10 TC 40*72*10 TC 44*62*10 TC 45*65*12
    TC 40*62*12 TC 40*75*12 TC 44*65*11 TC 45*65*8
    TC 40*62*5 TC 40*80*12 PCS 45*55*6 TC 45*68*12
    TC 45*70*12 TC 48*65*9 PCS 50*68*7 TC 50*90*10
    TC 45*72*12 TC 48*68*12 TC 50*68*9 TC 52*65*9
    TC 45*72*8 TC 48*70*12 TC 50*70*11 TC 52*70*9
    TC 45*74*12 TC 48*72*12 TC 50*70*12 TC 52*72*12
    TC 45*75*12 TC 48*72*8 TC 50*72*12 TC 52*72*8
    TC 45*80*12 TC 50*62*7 TC 50*72*8 TC 52*75*12
    TC 48*60*9 PCS 50*62*7 TC 50*75*12 TC 52*90*12
    TC 48*62*9 TC 50*62*9 TC 50*78*12 TC 53*72*8
    TC 48*65*7 TC 50*65*9 TC 50*80*12 TC 54*81*12
    TC 55*65*9 TC 55*80*12 TC 60*75*11 TC 60*82*12
    PCS 55*67*7 TC 55*82*12 TC 60*75*9 SM 60*82*12
    TC 55*70*10 TC 55*85*12 TC 60*78*12 D 60*82*12
    TC 55*70*9 PCS 57*70*7 TC 60*80*10 TCN 60*82*12
    TC 55*72*12 TC 58*72*8 TC 60*80*12 S 60*82*6
    TC 55*72*9 TC 58*75*12 D 60*80*12 D 60*82*9
    TC 55*75*12 TC 58*75*9 DM 60*80*12 TC 60*85*12
    TC 55*78*12 TC 58*80*12 S 60*80*8 D 60*85*12
    VC 55*78*9 PCS 60*72*7 DM 60*82*11 DM 60*85*16
    D 60*85*6 D 60*110*14 TC 62*82*12 D 63*88*13
    DA 60*85.5*12 DM 60.3*79.3*11.1 DM 62*82*9 VC 63.5*76.2*7
    D 60*88*12 DM 60.3*88.9*15.8 TC 62*85*12 SM 63.5*82.5*9.5
    TC 60*90*12 VC 62*74*7 DM 62*85*12 TC 63.5*88*12.5
    DM 60*90*12 D 62*75*6 D 62*85*12 DA 63.5*88.9*12
    D 60*90*12 D 62*75*9 VB 63*75*6 D 63.5*90*13
    TC 60*95*12 TC 62*80*9 D 63*80*12 VC 64*82*10
    D 60*95*12 D 62*80*9 D 63*85*12 PCS 65*77*7
    DM 60*102*12 TC 62*82*10 DM 63*85*9 VB 65*77*7
    TC 65*78*8 D 65*82*10
    TC 65*80*10 D 65*82*12
    D 65*80*10 TC 65*85*12
    D 65*80*12 D 65*85*13
    DM 65*80*12
    D 65*80*8
    DM 65*81*11
    TC 65*82*10
  • Type Dimension Type Dimension Type Dimension Type Dimension
    DM 65*85*13 TCN 65*90*13 D 65*100*13 TC 68*92*12
    TC 65*88*12 TC 65*90*15 TC 65*120*13 DM 68*92*12
    D 65*88*12 TC 65*92*12 D 65*120*13 D 68*92*12
    DM 65*88*12 D 65*92*13 DA 66.5*90*12 D 68*95*13
    VC 65*88*5 DM 65*92*13 D 67.8*104.7*9.5 DM 69.85*95.25*12.5
    SM 65*89*14 TC 65*95*13 TC 68*90*12 PCS 70*82*7
    DM 65*90*11 D 65*95*14 DA 68*90*12 VB 70*82*7
    TC 65*90*12 MG 65*95*16 D 68*90*13 VB 70*83*6
    D 65*90*13 TC 65*100*13 DM 68*90*13 TC 70*85*12
    D 70*85*12 DM 70*88*9 D 70*93*11 D 70*100*13
    D 70*85*6 DM 70*89*12 D 70*95*12 DM 70*100*13
    PCS 70*85*7 SM 70*90*10 DM 70*95*12 DM 70*101.8*13
    D 70*85*8 TC 70*90*12 TC 70*95*13 DM 70*102*13
    S 70*85*8 D 70*90*12 SC 70*95*13 DM 70*105*13
    DM 70*86*10 TC 70*92*12 TC 70*98.5*12 TC 70*110*12
    D 70*87.5*10 D 70*92*12 DM 70*98.5*12 D 70*110*8
    TC 70*88*12 DA 70*92*12 DA 70*98.5*12 TC 70*115*12
    D 70*88*12 DM 70*92*13 TC 70*100*13 DM 70*135*14
    D 72*88*12 PCS 75*85*7 D 75*95*10 DM 75*100*13
    TC 72*90*10 PCS 75*87*7 TC 75*95*12 SM 75*100*13
    D 72*95*12 VB 75*87*7 DM 75*95*12 VC 75*100*5
    D 72*96*9 D 75*88*12 D 75*95*12 VC 75*100*7
    TC 72*96*9 TC 75*90*10 TC 75*95*13 S 75*100*8
    SA 73*101.6*13.5 D 75*90*10 D 75*97*12 TC 75*102*13
    SM 74*90*10 S 75*90*6 D 75*100*10 D 75*102*13
    D 74*95*12 D 75*92*12 TC 75*100*13 TC 75*105*13
    D 74*96*12 S 75*95*10 D 75*100*13 D 75*105*13
    DM 75*105*15 DM 76.2*101.6*11 VC 80*95*6 D 80*105*13
    TC 75*110*13 S 76.2*114.3*10.6 D 80*96*9 TCN 80*105*13
    D 75*114.5*13 S 77*100*11 S 80*98*11 DA 80*108*12.5
    D 75*115*14 TC 77*100*12 S 80*98.5*12.7 TC 80*110*13
    DM 75*121*13 D 78*100*13 TC 80*100*10 D 80*110*13
    D4 75*130*12 DM 79.3*104.7*14.3 D 80*100*10 DM 80*110*14
    D 75*140*14 DA 79.9*101.8*11.9 DM 80*100*10 VC 80*110*7
    DM 76*93*10 PCS 80*92*7 TC 80*100*13 TC 80*114*15
    DA 76*101.8*12 VB 80*92*7 TC 80*105*13 TC 80*115*13
    D 80*115*14 TB 82*108*13 D 85*105*13 TC 85*115*13
    TC 80*115*15 VC 82.5*107.9*12.7 VC 85*105*9 D 85*115*14
    TC 80*120*13 D 83*100*9 DM 85*106*12 TC 85*120*13
    D 80*120*15 PCS 85*97*7 SM 85*110*12 D 85*120*15
    S 80*130*13 D 85*98.5*9 TC 85*110*13 D 85*125*15
    SM 82*102*12.5 VB 85*99*7 D 85*110*13 S 85.5*127*13
    DA 82*105*13 TC 85*100*13 DM 85*110*13 D 87*115*14
    DM 82*108*12 S 85*100*6 TCN 85*110*13 S 88.9*111.2*9.5
    DA 82*108*12.5 TC 85*105*13 VC 85*110*7 DM 88.9*114.3*12.7
    SA 89*111*13 TC 90*115*13 DM 90*125*14 TC 95*115*13
    D 89*115*12 D 90*115*13 TC 90*130*13 D 95*115*13
    D 90*105*12 DM 90*115*13 D 90*130*13 DM 95*115*13
    D 90*110*10 SA 90*115*13 TC 90*135*13 SM 95*116*13
    D 90*110*12 SM 90*115*13 D 90*135*15 S 95*120*12
    TC 90*110*13 TC 90*120*13 DA 92*114.5*13 TC 95*120*13
    D 90*110*13 D 90*120*13 D 92*127*10 DM 95*120*13
    DA 90*114.5*13 TC 90*125*13 TC 95*110*13 D 95*120*13
    D 90*115*12 D 90*125*13 DA 95*114.5*13 S 95*120*13
    VC 95*120*8 D 96*117*10 DM 100*125*13 D 100*130*13
    D 95*125*12 D 100*120*12 D 100*125*13 D 100*135*12
    TC 95*125*13 TC 100*120*13 TCN 100*125*13 DM 100*135*12
    DM 95*125*13 SA 100*120*13 VC 100*125*8 TC 100*135*13
    D 95*125*13 D 100*120*13 DM 100*127*11 DM 100*136.5*12.7
    TC 95*130*13 DA 100*124*13 D 100*127*13 DM4 100.01*136.5*13
    D 95*130*13 DM 100*125*11 DM 100*127*13 DM 101.6*127*11.8
    D 95*135*13 TC 100*125*13 TC 100*130*13 DM 101.6*133.5*12.7
    VC 95.2*120.65*12.7 TC 100*125*13 SA 100*130*13 D 101.7*125*13
    D 105*125*13 D 105*135*13 DA 108*133.5*12 S 110*140*14
    D 105*125*13 TC 105*135*14 D 110*125*7 TC 110*145*14
    TC 105*125*13 DM 105*135*15 D 110*130*12 D 110*145*15
    SA 105*127*12.5 SA 105*140*13 S 110*130*12 D 112*142*14
    D 105*130*12 TC 105*140*14 TC 110*130*13 S 115*130*7
    D 105*130*13 D 105*140*14 D 110*130*13 DA 115*135*12
    TC 105*130*13 TC 105*140*14 TC 110*140*14 TC 115*135*13
    TC 105*130*14 D 105*150*14 D 110*140*14 D 115*135*13
    DA 105*130*15 SA 105*152.5*15 SA 110*140*14 TC 115*135*8
    TC 115*140*14 D 120*145*14 TC 125*150*14 DM 127*168*12.8
    D 115*140*14 S 120*146*12 DM 125*150*14 D 129*148*14
    TC 115*145*14 TC 120*150*14 D 125*150*14 DM 130*150*14
    D 115*145*14 DM 120*150*14 TC 125*155*14 TC 130*150*14
    DM 115*145*14 D 120*150*14 D 125*155*14 TC 130*160*14
    S 117.4*142.8*12.7 DM 120*155*14 D 125*160*14 D 130*160*14
    DM 117.4*168*12.7 DM 120*155*16 S 125*160*16 DM 130*160*14
    D 120*140*11 S 120*160*10 DM 127*158.7*14.2 D 130*165*14
    TC 120*140*14 DA 124*159*14 DA 127*159*14 130*170
    DM 130*170*14 DM 135*175*16 DM 140*171.5*15 DM 146*170*18
    DM 133.3*159*14 DA 138*168*14 SM 140*171.5*16 D 150*170*15
    DM 133.5*158.7*14.2 D 140*160*12 MG 140*175*18 D 150*180*12
    VC 135*154*9 TC 140*160*14 TC 145*175*14 TC 150*180*14
    D 135*160*12 D 140*165*14 D 145*175*14 D 150*180*14
    TC 135*165*14 TC 140*170*14 DM 145*175*16 SM 150*180*14
    D 135*165*14 DM 140*170*14 D 145*180*13 DM 150*180*16
    DM 135*165*14 D 140*170*14 D 145*190*16 DM 152*171.5*12.7
    D 135*170*14 SA 140*17015 D 145/167*13 D 155*180*15
    D 155*185*14 TC 160*190*16 D 165*200*15 D 175*200*19
    D 155*190*15 DM 160*190*17 MG 165*201*20 D 175*210*16
    D 155*200*15 DA 160*190*20 SM 165*220*20 D 175*225*20
    DM 155.5*180.9*15.8 DM 160*196*20 D 170*190*14 D 175*230*20
    DM 158.8*190.5*14 D 160*200*15 TC 170*200*16 DA 176*200*16
    TC 160*190*14 DM 160*200*20 D 170*200*16 D 177.8*212.7*15.9
    SM 160*190*14 D 160*210*20 D 170*205*16 D 178*204*12
    D 160*190*14 TC 165*190*14 DM 170*205*18 TC 180*210*16
    D 160*190*15 D 165*195*14 D 170*225*20 SA 180*210*16
    DM 180*210*16 D 195*225*15 D 200*245*24 S 215*240*12
    D 180*210*16 D 195*230*15 D 200*250*15 MG 220*250*13
    S 180*210*16 S 200*230*14 D 205*230*15 D 220*250*15
    D 180*215*20 D 200*230*15 SA 210*240*12 TC 220*250*16
    DM 185*210*15 TC 200*230*16 D 210*240*15 D 220*250*16
    SM 190*210*16 D 200*230*16 TC 210*240*16 D 220*255*16
    D 190*220*14 D 200*230*20 D 210*250*20 D 220*260*22
    TC 190*220*16 D 200*235*16 MG 210*250*20 S 230*260*15
    TC 190*225*16 D 200*240*20 D 210*265*24 D 230*260*15
    D 190*225*16
    TC 230*260*16 D 240*290*16 D 260*290*15 DM 270*310*17
    D 230*260*20 DM 240*300*25 TC 260*300*20 D 270*310*20
    D 230*270*20 D 250*280*15 D 260*300*20 S 270*420*25
    D 230*280*20 TC 250*280*16 MG 260*305*22 D 280*320*22
    D 240*270*15 SA 250*280*16 D 260*320*25 MG 280*325*22
    TC 240*270*16 DM 250*285*16 SM 260*320*25 D 280*340*25
    DM 240*275*16 D 250*285*16 D 265*305*16 D 290*330*20
    D 240*27516 MG 250*290*20 SM 265*305*18 D 300*340*16
    D 240*280*19 DM 255*290*16 D 270*300*14 S 300*340*20
    MG 300*345*22 SM 336.97*388*25 DM 377*415*15 D 420*480*25
    D 300*360*24 DM 340*380*16 D 380*420*20 DM 430*470*20
    D 310*340*15 D 340*380*20 SM 380*440*25 SM 460*490*18
    D 315*360*20 D 340*400*25 DM 380*440*28 DM 460*510*24
    D 320*360*20 D 342.5*387*18 DM 380*440*35 D 475*525*25
    SM 320*360*25 D 350*390*18 SM 390*434*20 D 480*530*25
    SA 320*380*25 SA 350*400*25 D 390*450*25 SM 490*550*25
    D 330*370*20 D 360*400*20 D 400*440*20 SM 500*540*20
    S 335*375*18 MG 370*420*25 D 420*460*20 D 500*560*25
    D 530*580*30
    DM 540*600*25
    D 550*600*22
    SM 600*640*20
    DM 715*774*25
    D 750*800*25
    MG 805*855*15
    D 900*950
